Black 3 Position PIANO Type SPST 2.54mm Pitch SMD Gull Wing DIP Switch
Waterproof Electronic Dip Switch 8 Position 5P Single Pole Single Throw 2.54 Pitch Piano Type Dip Swit
Half-pitch toggle switchThe foot spacing of the half-pitch toggle switch is half that of the normal dip switch,
that is, the Pitch is 1.27mm. The main feature of the half-pitch toggle switch is small size, half-pitch toggle
switch takes up less space on the circuit board. The half - pitch toggle switch is suitable for use in micro -
precision equipment.
DIP switches'n Features
1 Multiple Occasions, with multi-gear structure design, switch slide power evenly, good sense of paragraph
2 Fire Retardant, UL94-V0 injection molding, strong pressure resistance
3 Link Contacts, small contact resistance, reliable and stable
4 Appearance is clean, solid and stable
5 Convenient installation
DIP Switch's Specification
| MECHANICAL | | 1).Operation Force | 1000gf max. | | 2).Stroke | 2.00mm | | 3).Operation Temp | -40deg C to 85deg C | | 4).Storage Temp | -40deg C to 85deg C | | 5).Positions | 3 position | | ELECTRICAL | | 1).Electrical Life | 2000 operations cycles | | 2).Non-Switching Rating | 100mA, 50VDC | | 3).Switching rating | 25mA, 24VDC | | 4).Contact Resistance | 50mOhms max. at initial;100mOhms max.after life test. | | 5).Insulation Resistance | 100MOhms,500VDC | | 6).Dielectric Strength | 500VAC/1 minute | | 7).Circuit | SPST | |

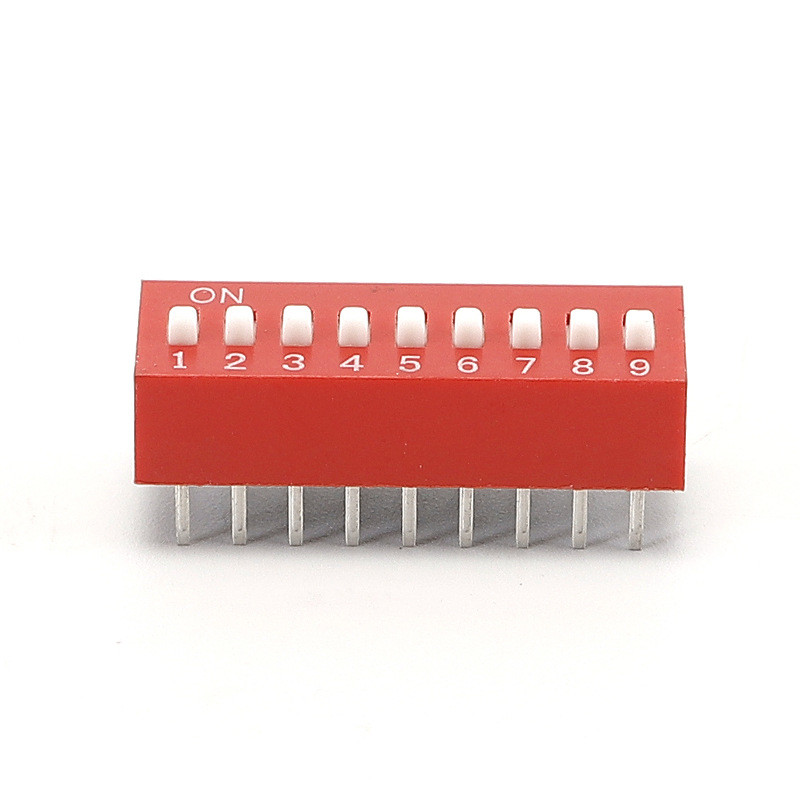

Dip switch as a manual operation of a micro switch, dip switch in communication, security and many other
equipment products are widely used. There are two pins ON the back of each key corresponding to the dip
switch, to the ON side, then the following two pins through; Otherwise disconnect. These four keys are
independent and have nothing to do with each other. This type of device is mostly used for binary coding.
KKG electric CO.,LTD. is a company devotes itself to researching and manufacturing the components
such as switches, sockets and connectors. The Production of Products mainly used in computer products,
consumer electronics, electrical & electronics, industrial equipment & components......
So far,KKG set up own factory ,Processing factory,OEM factory and sales company in mainland China,
Taiwan(China) and Hong Kong .
During this time, the company had won many awards. Just like the industry first prize for the ISO9001
and the quality management.
1 More than 2,000 models of switches and sockets.
2 Monthly production capacity: 30 million pieces.
3 MOQ: 5,000pcs, it’s negotiable.
4 Good quality with competitive price.
5 We can offer free samples with shipping and taxes pay by the buyer.
6 Various operation force, height, and color for your choice.
7 The discount depends on your order quantity.
Q1. What is your sample policy?
A: Free Sample is provided if there is in stock, and customers need to pay the freight fee.
Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3: How do you make our business long-term and good relationship?
A: 1.Our high quality and competitive price are the most important factors to maintain
long-term and good relation -ship with our customers.
2Good service is our basic principle for every customers.
