Black 3 Position PIANO Type SPST 2.54mm Pitch SMD Gull Wing DIP Switch
Waterproof Electronic Dip Switch 8 Position 5P Single Pole Single Throw 2.54 Pitch Piano Type Dip Swit
Slide DIP switches are standard toggle switches. Each switch has two positions - either closed or open
(also on/off or 1/0) and therefore operates as an SPST switch. There are also three-position slide DIP
switches with a central neutral location and a contact at each end, typically configured as on/off/on. Any
DIP switch can be configured as normally open (NO) or normally closed (NC). Normally open switches
complete the circuit when actuated, while normally closed switches break the circuit when actuated
DIP switches'n Features
1 Multiple Occasions, with multi-gear structure design, switch slide power evenly, good sense of paragraph
2 Fire Retardant, UL94-V0 injection molding, strong pressure resistance
3 Link Contacts, small contact resistance, reliable and stable
4 Appearance is clean, solid and stable
5 Convenient installation
DIP Switch's Specification
| MECHANICAL | | 1).Operation Force | 1000gf max. | | 2).Stroke | 2.00mm | | 3).Operation Temp | -40deg C to 85deg C | | 4).Storage Temp | -40deg C to 85deg C | | 5).Positions | 3 position | | ELECTRICAL | | 1).Electrical Life | 2000 operations cycles | | 2).Non-Switching Rating | 100mA, 50VDC | | 3).Switching rating | 25mA, 24VDC | | 4).Contact Resistance | 50mOhms max. at initial;100mOhms max.after life test. | | 5).Insulation Resistance | 100MOhms,500VDC | | 6).Dielectric Strength | 500VAC/1 minute | | 7).Circuit | SPST | |

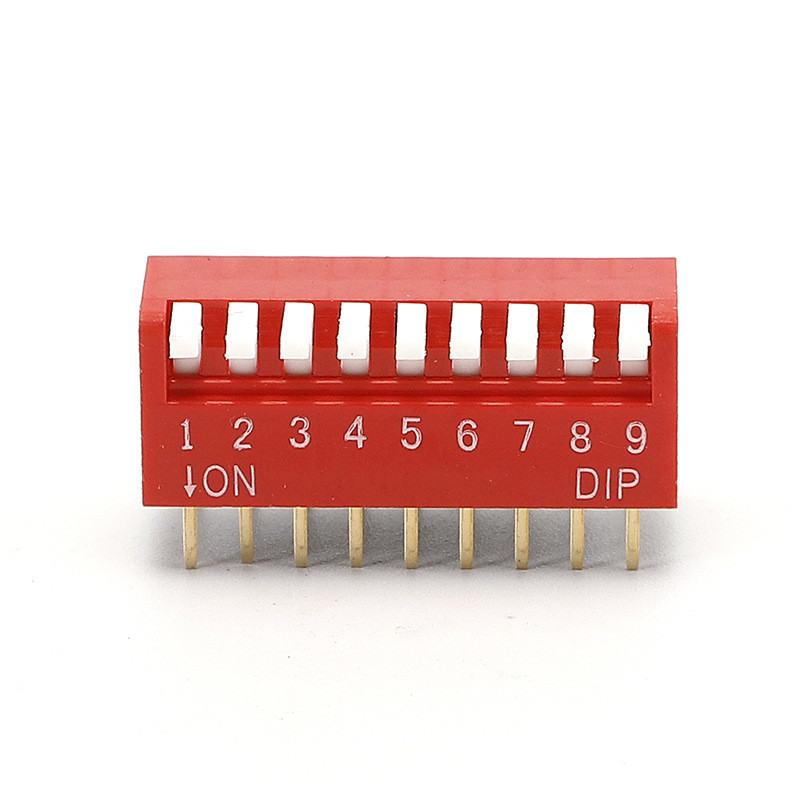

Dip switch as a manual operation of a micro switch, dip switch in communication, security and many other
equipment products are widely used. There are two pins ON the back of each key corresponding to the dip
switch, to the ON side, then the following two pins through; Otherwise disconnect. These four keys are
independent and have nothing to do with each other. This type of device is mostly used for binary coding.
KKG electric CO.,LTD. is a company devotes itself to researching and manufacturing the components
such as switches, sockets and connectors. The Production of Products mainly used in computer products,
consumer electronics, electrical & electronics, industrial equipment & components......
So far,KKG set up own factory ,Processing factory,OEM factory and sales company in mainland China,
Taiwan(China) and Hong Kong .
During this time, the company had won many awards. Just like the industry first prize for the ISO9001
and the quality management.
1 More than 2,000 models of switches and sockets.
2 Monthly production capacity: 30 million pieces.
3 MOQ: 5,000pcs, it’s negotiable.
4 Good quality with competitive price.
5 We can offer free samples with shipping and taxes pay by the buyer.
6 Various operation force, height, and color for your choice.
7 The discount depends on your order quantity.
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Tact Switch,Slide Switch,Multi-Function Switch,Lever Switch,Waterproof Switch
3. why should you buy from us not from other suppliers?
KKG Electronics is the first brand in China for micro switch, such as tact switch,
multi-functional type, slide switch, lever switch, and detector switch, etc. We promise
to our customers with high Quality, Competitive Price, Fast Delivery, Quick Response
4. what services can we provide?
Accepted Delivery Terms: FOB,CIF,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD;
Accepted Payment Type: T/T,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
