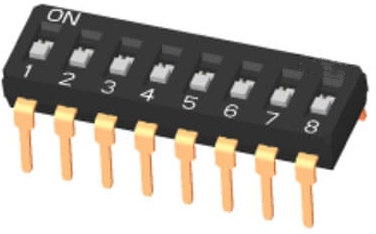

Auto Insert Straight Lead 2.54mm Pitch DIP Switch

Auto-insert/ Straight Lead: 2.54mm pitch





Dip switch includes piano type and regular type. The insulator made from engineering plastic,

with excellent heat resistance and chemical resistance. Dependability and longevity can be

ensured by standard gold plated contact. The products can be used around 3000 times.

This series is widely used in different products which need manual programming, such as

data handing, communication, remote control, burglar alarm system. Products are designed

in accordance with CE, ROHS, REACH standard.



DIP Switch DIA/H Series' Feature



1 Twin contacts designed to ensure stable contact
2 Highly resistant to physical shock & vibration
3 Tape sealed version available to ensure washability
4 Low profile to save PCB space
5 Light click feeling
6 Heat resistance: 260°C for 10 sec.



DIP Switch DIA/H Series' Package



P/N	No. Of Pole	Dim. A	Quantity per Tube
DIS/A/H01	1	2.98mm	174
DIS/A/H02	2	5.52mm	95
DIS/A/H03	3	8.06mm	65
DIS/A/H04	4	10.60mm	48
DIS/A/H05	5	13.14mm	39
DIS/A/H06	6	15.68mm	33
DIS/A/H07	7	18.22mm	28
DIS/A/H08	8	20.76mm	25
DIS/A/H09	9	23.30mm	22
DIS/A/H10	10	25.84mm	20
DIS/A/H12	12	30.92mm	17



DIP Switch DIA/H Series' Specification



Switching	25mA, 24VDC
Non-switching	100mA, 50VDC
Initial	50m Ω Max.
After Life Test	100mΩ Max.
Insulation resistance	100mΩ Min at 500VDC.
Dielectric Strength	300VAC/1 minute
Operating Force	1,000g Max
Mechanical Life	5,000 Cycles
Electrical Life	2,000 Cycles

DIP Switch is widely used in household appliances, 3C (computer, communication, consumer electronics),

office equipment, medical treatment, security, personal care, automotive electronics, industrial control

and other fields
