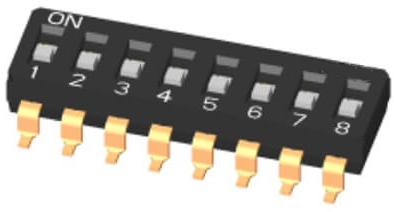

DIP Switc SMD Gull Wing Lead: 2.54mm pitch
DIP Switch DIA/H Series' Materials
- Cove & Base: Thermoplatic 94V-0, Black
- Actuator: Thermoplastic UL 94-HB, White
- Movable Contact: Copper Alloy, Gold-or Pure-Tin-plated
- Terminal Contact & Terminal: Copper Alloy, Gold-or Pure-Tin-Plated
- Tape Sealed: Polyimide Film
DIP Switch DIA/H Series' Soldering Information
- Hand Soldering
Soldering Iron of 30W or under at 350°C for 3 sec. max. or at 270°C for 5 sec. max. - Wave Soldering
260±5°C for 10 sec. max. - Reflow Soldering.
Peak temperature: 245 or 250°C max. The time above 240 or 245°C must be 30 sec. max. - Keep all actuators in "OFF" position during soldering and cleaning process
DIP Switch DIA/H Series' Feature
1 Twin contacts designed to ensure stable contact
2 Highly resistant to physical shock & vibration
3 Tape sealed version available to ensure washability
4 Low profile to save PCB space
5 Light click feeling
6 Heat resistance: 260°C for 10 sec.
DIP Switch DIA/H Series' Specification
| Switching | 25mA, 24VDC |
| Non-switching | 100mA, 50VDC |
| Initial | 50m Ω Max. |
| After Life Test | 100mΩ Max. |
| Insulation resistance | 100mΩ Min at 500VDC. |
| Dielectric Strength | 300VAC/1 minute |
| Operating Force | 1,000g Max |
| Mechanical Life | 5,000 Cycles |
| Electrical Life | 2,000 Cycles |
DIP Switch DIA/H Series' Package
| P/N | No. Of Pole | Dim. A | Quantity per Tube |
| DIS/A/H01 | 1 | 2.98mm | 174 |
| DIS/A/H02 | 2 | 5.52mm | 95 |
| DIS/A/H03 | 3 | 8.06mm | 65 |
| DIS/A/H04 | 4 | 10.60mm | 48 |
| DIS/A/H05 | 5 | 13.14mm | 39 |
| DIS/A/H06 | 6 | 15.68mm | 33 |
| DIS/A/H07 | 7 | 18.22mm | 28 |
| DIS/A/H08 | 8 | 20.76mm | 25 |
| DIS/A/H09 | 9 | 23.30mm | 22 |
| DIS/A/H10 | 10 | 25.84mm | 20 |
| DIS/A/H12 | 12 | 30.92mm | 17 |
DIP Switch DIA/H Searies' Wiring Diagram
DIP Switch is widely used in household appliances, 3C (computer, communication, consumer electronics),
office equipment, medical treatment, security, personal care, automotive electronics, industrial control
and other fields
KKG Electronics (Taiwan) Co., Ltd. is a dedicated switch, socket and other components R & D and
manufacturing company, its products are mainly used in consumer electronics, home entertainment
products, mobile communications products, automotive electronics,medical equipment products.
By the customer's affirmation. Since the establishment of thecompany in 1998, the company has been
with the development of electronic components.
During this period, the company has won many awards such as ISO9001 and quality management
industry excellence Award. Designated as "quality Excellence" factory, in the harsh environment of
fierce domestic competition, we protect our leadership position and reputation in order to meet new
challenges.
1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: SMALL ORDER WELCOME...
4: SUPPORT 7 DAYS REFUND MONEY
5: ONLINE PAYMENT.
6: AFTER SALES SERVICES 24/7
We had the honor to serve many of the famous big companies all over the world
WELCOME TO BE ONE OF OUR TOP "VIP" CUSTOMERS".
WE ACCEPT ‘SUPPORT’ OEM ORDERS
WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE".
WE BELIEVE IN “WIN-WIN”SITUATION
LOOKING FOR AGENT
"With us your MONEY in safe ; Your BUSINESS in safe"
1. Why do we choose KKG power supply?
A: We promise:All of our products are power regulated.The output voltage
and current are true one.all with good quality and competitive price.We
assure you timely delivery by keeping 80% standard products inventory
and best after-sale service.All have done 100% long time full-load aging
test/ burn-in test before shipment.
2. What is the applicable range of this product?
A: CCTV,all Camera,DVR,NVR,LED,Router,Laptop and RJ45 connector etc.
3. Can your products pass CE/ROHS certificate?
A: Yes,our products meet the industrial standards,like.CE/RoHS/CCC
4. Accept sample order ?What is your minimum order quantity?
A: trial order or sample order is accept,but same cost as bulk
5. What are the shipping ways you can offer?
A: By air/sea according to customers' requirements.
Product Tags:
|
|
2.54mm Pitch Gull Wing Lead SMD DIP Switch 25mA 24VDC Images
|
